This Water Sachet Packing Machine is liquid packing in sachet, like pure water, mineral water, wine, vinegar, fruit juice, beverage and liquid chemical products. Three side sealing using single or compound film. Client can choose to equip with water treatment equipment and Sealing equipment.
Liqud Sachet Packing and Sealing Machine

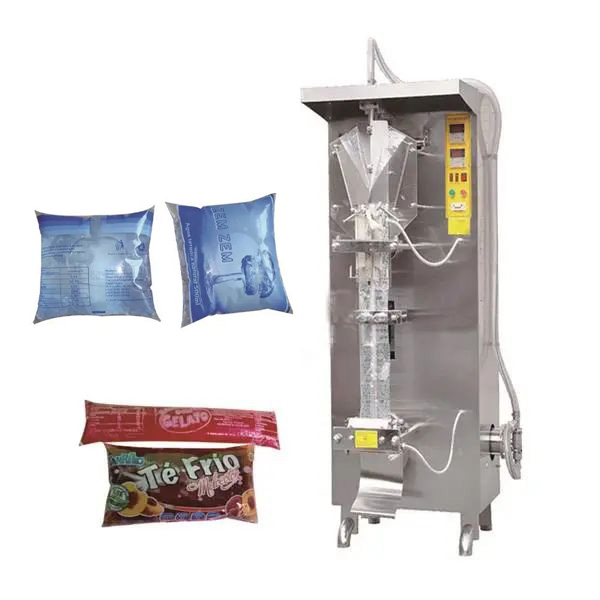

Water Sachet Packing Machine
Application
It is applicable to pack pure water, mineral water, wine, vinegar, fruit juice, beverage and liquid chemical products with single and compound film.
Function
This machine is a vertical type machine, three sides sealing, intermittent high-accuracy liquid packing machine. It can accomplish all systematical processes of bag-making, feeding, sealing, printing date code, cutting and counting. Owing to being controlled by microprocessor, the orientation is accurate and reliable.
Parameters：
| No. | Items | Parameters |
| 1 | Film Width(mm) | 320 mm |
| 2 | Capacity(ml) | 100-500ml |
| 3 | Produce Rate: | 2000Bag/H |
| 4 | Power Supply | 220V/380V, 50Hz |
| 5 | Power Consumption | 1.5KW |
| 6 | Weight: | 650KG |
| 7 | Size(L*W*H) | 1050*950*1950mm |
Water Treatment Equipment
Description
As an option for water sachet filling machine, use food grade PVC tube with GFRP pretreatment tank.
(Can be customized to full stainless steel if needed)
Parameters
| No. | Items | Parameters |
| 1 | Capacity | 1000L/H |
| 2 | Booster pump | CHL2-30 |
| 3 | Sand filter | Ø300*1650mm 2000L/H |
| 4 | Carbon filter | Ø300*1650mm 2000L/H |
| 5 | Precision filter | Ø195*250 2000L/H |
| 6 | High pressur pump | CHL2-110 |
| 7 | RO system | ULP4040 4PCS |
| 8 | TDS meters: | CM-230 2PCS |
| 9 | Flow-Meter | 2000L/H 2PCS |
| 10 | Electric control box | 1SET |
