The double head flat surface labeling machine is customized machine based on HAP200, which is used for automatically apply two labels on top and bottom side of products. The suitable products are mainly white out (correction fluid), candy box, cookies box, bagged pasta, cosmetic jar, and many other product that need up and down labeling.

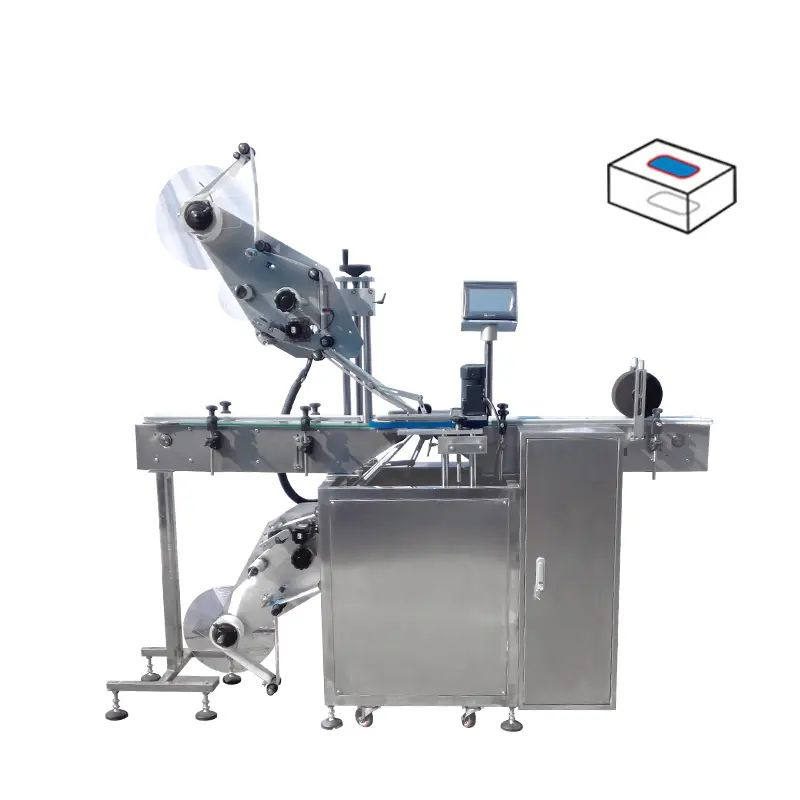

Automatic Two Side Flat Surface Labeling Machine
Description
The Top and Bottom Labeling Machine is customized machine based on HAP200, which is used for automatically apply two labels on top and bottom side of products. The suitable products are mainly white out (correction fluid), candy box, cookies box, bagged pasta, cosmetic jar, and many other product that need up and down labeling.
The HAP200 flat surface labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling.
Features
1.Main body is made by stainless steel & high grade aluminum alloy.
2.Labeling head is driven by advanced step motor which is imported from Japan.
3.All the magic eye is advanced photo detector made in Japan.
4.PLC control system is equipped with human interface, including 60 groups of memory unit.
5.Labeling position and height is adjustable.
6.The transportation height can be adjusted by height of production line.
7.Be able to connect with conveyor and production line
8.Transparent label monitor for option.
Parameters:
| Items | Parameters |
| Size of Machine | Abt. 1600(L)×600(W)×1600(H)mm |
| Labeling Speed | 20-200pcs/min(it depends on the size of object and label length) |
| Height of Object | 30-200mm (can be customized) |
| Width of object | 20-200mm(Need to determine the size range according to the product situation) |
| Height of Label | 15-110mm(can be customized) |
| Length of Label | 25-300mm(can be customized) |
| Accuracy of Labeling | ±0.8mm (excluding object and label error) |
| Inside diameter of Label roller | 76mm |
| Outside diameter of Label roller | 280mm |

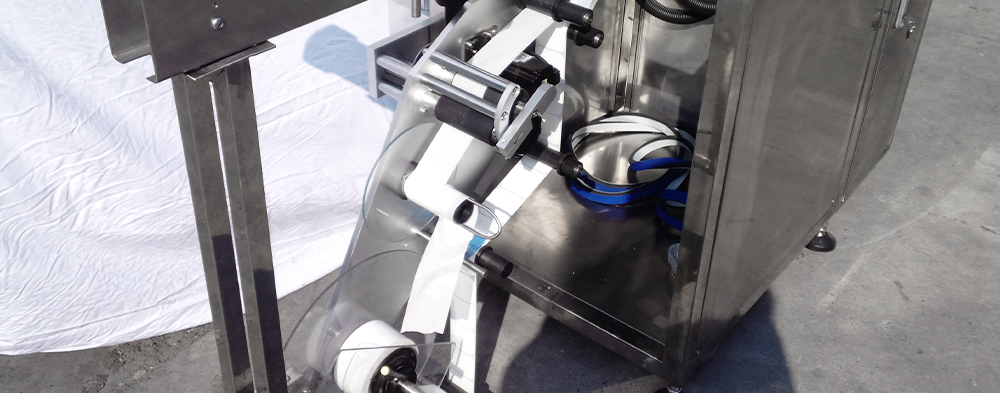

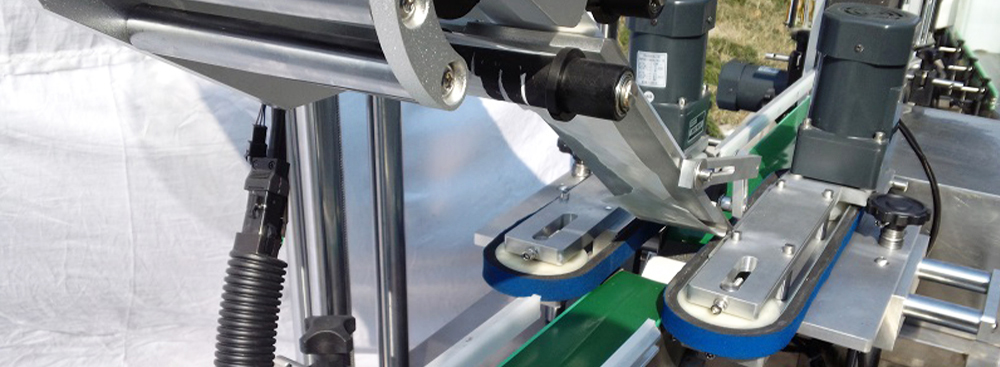

Details
