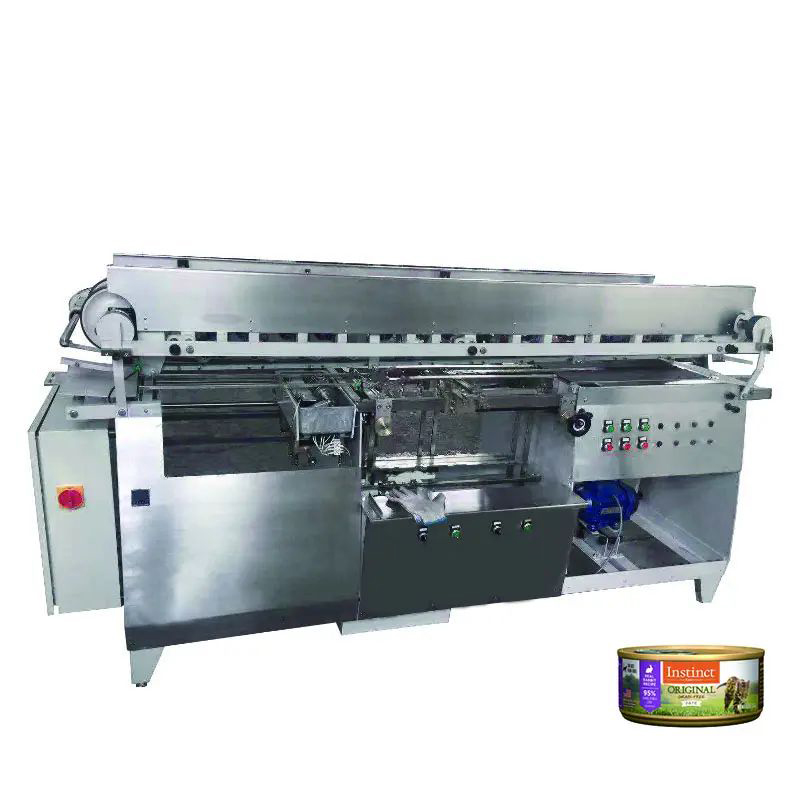

This Tin Can Label Pasting Machine is suitable for sticking a paper label on a cylindrical container. Film-coated labels with suitable flatness, hardness and thickness can also be attached. Whether the label is appropriate or not depends on the trial sticker. The machine adopts our unique gluing scheme to eliminate glue leakage at the bottom of the label box, making the glue range wider.
Horizontal Cold Glue Labeling Machine
Description
This is automatic tin can labeling machine , this machine is suitable for metal tin cans such as paste food tin can, canned fruit tin, beef food tin, cat food can etc.
Machine layout
Features
1.This machine is used for metal tin labeling. The tin rolled into the machine, by the pressure in the tin rolling on the belt drive, when the tin pass through the hot melt adhesive points, can be coated with a hot melt adhesive, along with the moving of tin, the tin part with glue will press the front of the label and stick the label on, and began to be rolled in on the tin. At the same time, the label end was glued by gluing mechanism. With the tin moving on, the label has been affixed to the tin on a roll. Then get out of the machine driven by rolling belt.
2.This machine has alternately label supply mechanism, no need to stop the machine when add label.
3.The end glue supply is controlled by tin. It will not supply glue if without tin.
4.Machines using frequency control can be adjusted according to production requirement.
5.The machine is only to change a few parts for replacing different size tin, the label adhesive only in two ends, with less glue and low cost.
Parameters
| Labeling capacity | 200-400 tins / min |
| The diameter of tin | Φ50mm-114mm |
| The height of tin | 30mm-240mm |
| The length of label | 160mm-370mm |
| The width of label | 25-236 mm |
| Power | 380V 50HZ 3 phases, 2.62KW |
| Compressed air | 2-4Kg/cm2, 10L/ min |
| Machine size | 1855mm × 750mm × 1250mm |
| Weight | 650Kg |
Labels
The labels usually are paper label in pieces, not in roll. It should be full wrapped of the tin can.
Conveyor and connecting parts
| Conveyor 1 | Width:607mm 0.25KW |
| Turning table | D: 1000mm 0.37KW |
| Conveyor 2 | Width:82mm 0.37KW |
| Can turner | To turn the direction of the can |
| Conveyor 3 | Width:190mm 0.55KW |
