The Semi Auto Stretch Film Wrapping Machine is mainly suitable for modern operations with large production volumes and high logistics efficiency to meet the packaging requirements of lighter or heavier goods. According to different products and actual needs on site, different packaging systems can be customized to automatically complete the process of sensing and packaging of goods. It is widely used in food, beverage, chemical, paper, building materials, medical and other industries.

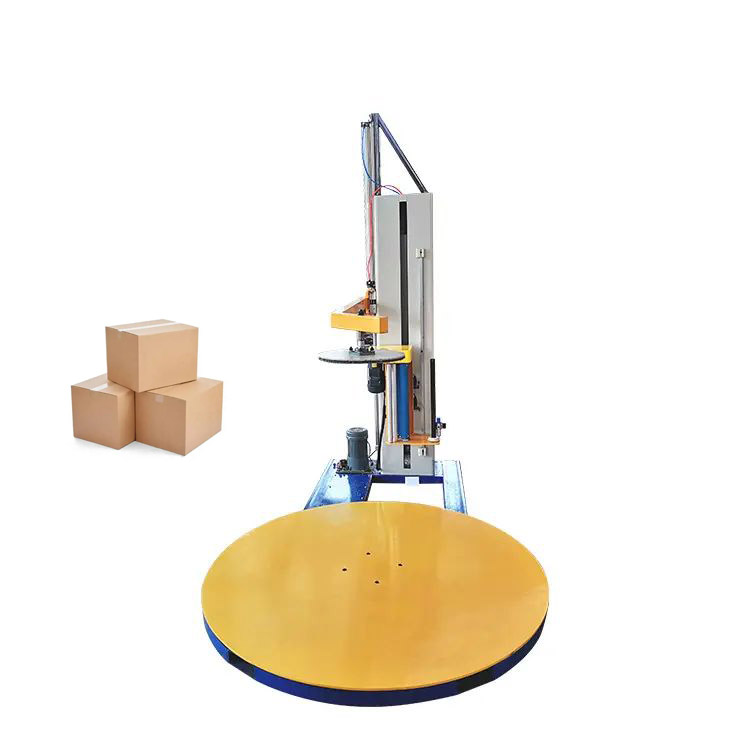

Semi Automatic Film Wrapping Packing Machine
Basic Features
1. With protection functions such as overload and over current, it is safe and reliable.
2. The design is simple and clear, and the maintenance is extremely convenient.
3. Closed structure, sturdy and durable.
4. It is controlled by PLC programmable controller. The number of winding turns can be set, local reinforcement can be selected, and it can be automatically reset.
5. One-key operation, flexible and practical.
6. The local winding of the winding target can be strengthened arbitrarily.
Technical parameter
| Machine | Box packing machine | |
| Packing range | 500-1200*500-1100 (L*W) | |
| Diameter of turntable | 1650mm | |
| Packing height | 2000mm | |
| Overall height | 2500mm | |
| Turntable height | 85mm | |
| Packaging efficiency | 20-40 Package/hour | |
| Turntable load-bearing | 1700kg (can be customized) | |
| Total Weight | 500kg | |
| Total power | 1.5kw | |
| Voltage | 220V | |
| Turntable speed | 0~12 rpm | |
| Applicable film | 15~35 stretch film for pre-stretched machine (25μ is recommended) | |
Suitable products
Any product that need to be packed by stretch films.
