The High Speed Vial Capping Machine is used for different kinds of round bottles shape in food, pharmacy and chemical industry, such as pharmaceutical liquid product, syrup, oil essential oil, and oral liquids etc. The structure of the machine is simple and reasonable, easy to operate, dust cover can optional.

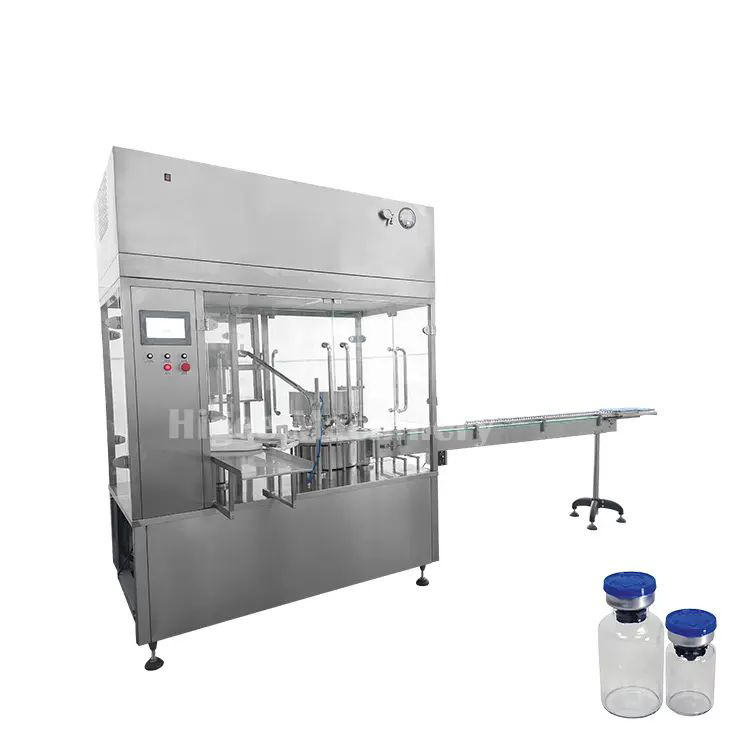

Automatic Vial ROPP Cap Sealing Machine 18000BPH
Features
1.Automatic cap sorting,automatic cap feeding,automatic capping,high production speed, high efficiency, stable and reliable operation.
2.Can be applied to the shape of glass vials.
3.Low failure rate, stable and reliable performance, long service life.
4.Adjustable cap sorting speed, automatic start and stop function
5. All electrical control is in accordance with international standards, the main components are imported components, frequency control, and the running speed is continuously adjustable.
6.overload protection and alarm prompt function, more safe and reliable.
7. The whole system is controlled by PLC. The color touch screen make the operation simpler.
Technical parameter
| Item | Specifications |
| Name | High speed capping machine with aluminum cap for 6ml 10ml |
| Production capacity | 15000-18000 bottles per hour |
| Bottle Size | Can be customized |
| Air Pressure | 0.6-0.8mpa |
| Power Supply | 3phases 380 or 400V 50hz |
| Power | 2.5KW |
| Weight | about 650KG |
| Machine Size | About 2200*1700*2000mm (L*W*H) (Without LAF size) |

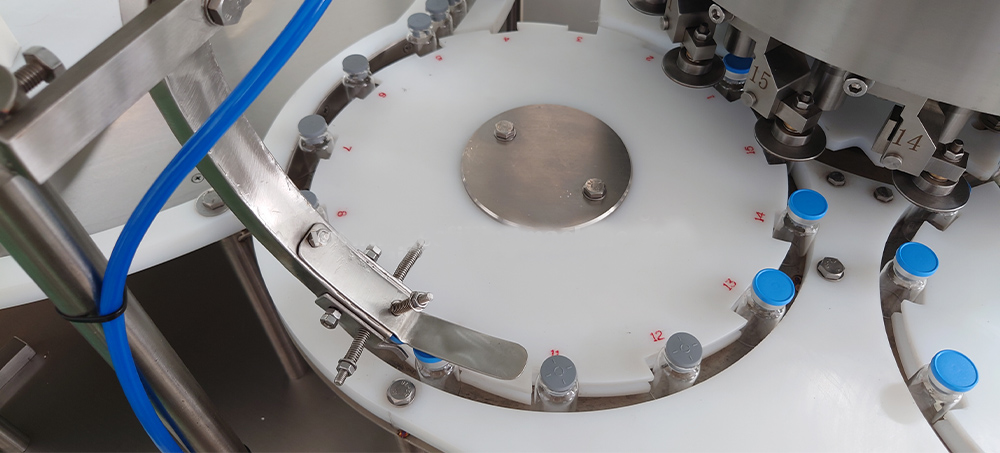

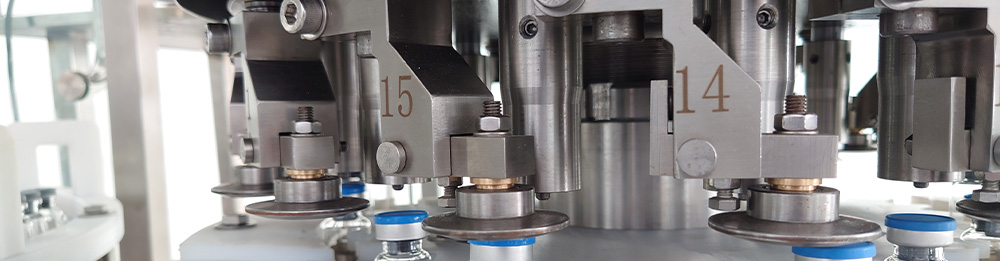

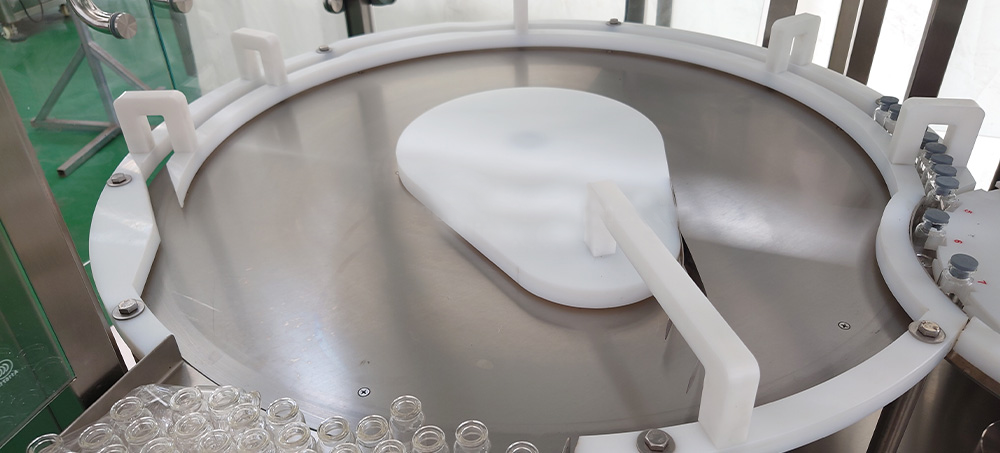

Details
