This automatic Flat Surface labeling machine is suitable for all kinds of top side labeling. widely used in pharmaceutical, Cosmetics, daily chemical, food and beverage etc. industries. It can be used separately or lined with filling or packing production line.
Auto Flat Surface Top side Sticker Labeling Machine
Automatic Labeling Machine for Flat Surface
Application:

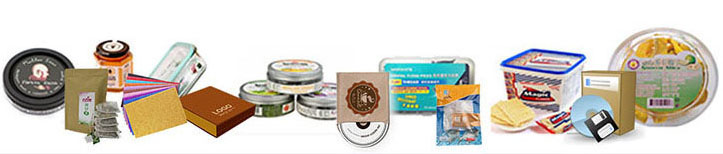

It’s applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling
It can work separately or connecting with conveyor to work with other equipment.
Features:
● Main body is made by SUS304 stainless steel & high grade aluminum alloy.
● Labeling head is driven by advanced step motor which is imported from Japan.
● All the magic eye is advanced photo detector made in Japan.
● PLC control system is equipped with human interface, including 60 groups of memory unit.
● Labeling position and height is adjustable.
● The transportation height can be adjusted by height of production line.
● Be able to connect with conveyor and production line
● Transparent label monitor for option.
Technical Parameter:
| Items | Parameters |
| Size of Machine: | Abt. 1600(L)×550(W)×1600(H)mm |
| Labeling Speed: | 20-200pcs/min(it depends on the size of object and label length) |
| Height of Object: | 30-200mm (can be customized) |
| Width of object | 20-200mm(Need to determine the size range according to the product situation) |
| Height of Label | 15-110mm(can be customized) |
| Length of Label: | 25-300mm(can be customized) |
| Accuracy of Labeling: | ±0.8mm (excluding object and label error) |
| Inside diameter of Label roller: | 76mm |
| Outside diameter of Label roller: | 350mm |
Option:
● Coding machine (max. 300pcs/minute)
● Transparent label monitor
