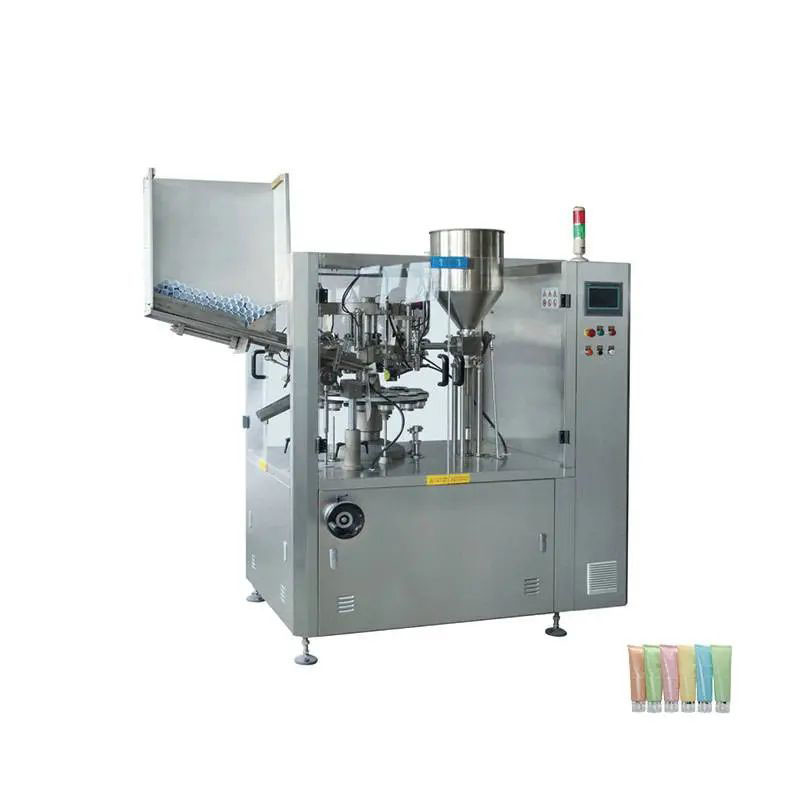

The Full Automatic Tube Facial Cream Filling Sealing Machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic color marking, filling, sealing, date printing and tail cutting, and are widely used in daily chemical, pharmaceutical, food and other industries.
Tube Cream Filling Sealing Machine
Automatic Cream Tube Filling Machine line
Application:
This automatic filling sealing machine is specially designed according to the cream making process of cosmetics and ointment products. This unit automatically loads the tube, heats, seals, with pretreatment system, and fills. With Mechanical piston type, electrical control system and operating platform system.
Working Flow:
1. automatic tubes feeding
2. automatic tubes loading
3. mark positioning
4. automatic filling ( no tube no filling)
5. tail hot melting
6. automatic heating
7. automatic coding machine( to print production date, batch number, letters on the tubes )
8. tubes positioning
9. Cutting
10. tubes output
Features:
* The design of this tube filling machine is in full compliance with the requirements of the pharmaceutical machinery industry and pharmaceutical production management regulations issued by the Food and Drug Administration.
* The design, production, assembly, debugging and materials of the main components are in strict compliance with GMP requirements.
* Automatically load the tube, automatically send the empty tube to the station for automatic labeling, filling, sealing, batch numbering, tail cutting and automatic ejection.
* The whole machine adopts mechanical cam transmission, strict precision control and processing technology of each transmission component, and high mechanical stability.
* The hot air heating system formed by imported fast and efficient heaters and highly stable flow meters makes the seal beautiful and firm.
* Stepless frequency conversion speed regulation is possible, and the production speed can reach 60~80 pieces/min.
* Automatic filling, no tube filling. The tail of viscous materials has a cutting function.
* False alarm, silent alarm, overload alarm function
* Built-in counting function and automatically stop running when the set number is reached
* The drive components are installed under the platform, safe and pollution-free
* The machine has a smooth surface, no dead ends, no poison, no smell, no pollution and it is easy to clean and maintain.
* The filling and sealing parts are contained in a semi-closed and non-static visual cover. It is installed on the platform for easy observation and operation.
* Optional heating and mixing system
* Optional automatic feeding system
Main Technical Parameters:
| Model | HG-80 | ||
| Power supply | 380V/50Hz/3P | ||
| Power | 4.5KW | ||
| Air pressure source | 0.5-0.7MPa | ||
| Air consumption | <0.6m3/min | ||
| Filling volume | 10-50ml | 50-100ml | 100-250ml |
| Filling accuracy | ≤±2℅ | ≤±1℅ | ≤±1℅ |
| Production capacity | 50-80pcs/min | ||
| Tube diameter | ф13-ф50mm | ||
| Tube length(including cap ) | ＜210mm | ||
| Machine size | 2000×1000×1900mm | ||
| Weight | 1000kg | ||
