![essentialoilfillingcappingmachine Filling Machine Manufacturer Essential Oil Filling Plugging Capping Machine](https://www.flexfillingmachine.com/wp-content/uploads/2024/03/essential-oil-filling-capping-machine.jpg)

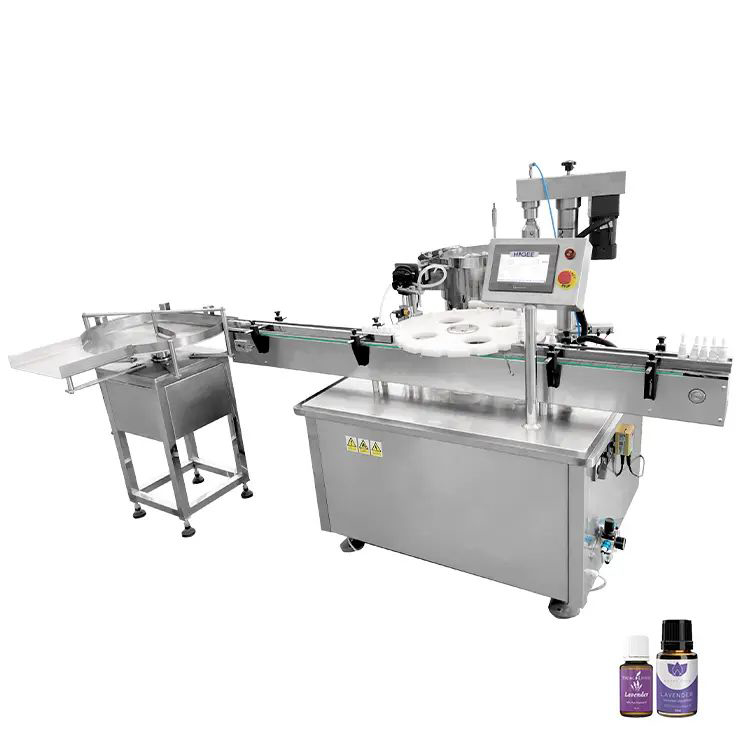

This Essential Oil Filling Plugging Capping Machine is designed for essential oil or similar product using glass or plastic bottle with inner plug and outer cap. The machine can fill 10-100 ml essential oil and automatically plugging and capping. The machine is compact and easy to operate.
![1essentialoil Filling Machine Manufacturer](https://www.flexfillingmachine.com/wp-content/uploads/2024/03/1-essential-oil.jpg)

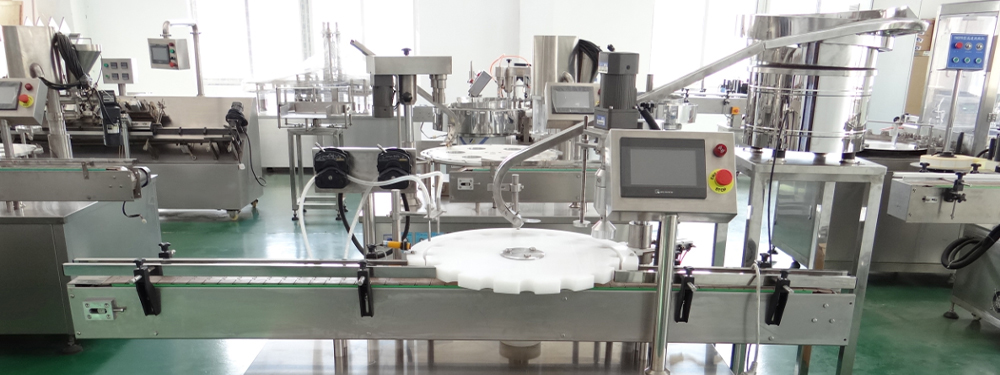

Automatic Essential Oil Filling Machine
![2essentialoilbottlefilling Filling Machine Manufacturer](https://www.flexfillingmachine.com/wp-content/uploads/2024/03/2-essential-oil-bottle-filling.jpg)
Features
1, This machine is applied for 15ml, 50ml round plastic bottle essential oil filling etc. in plastic or glass bottles. There is high accuracy cam mechanism to provide Graduated dial to locate the cap on, accelerating cam transmission capping head lifting; constant torsion capping, mechanical piston pump dosing and filling; touch screen control, no bottle no filling, no inside and outside cap, with advantage of stable transmission, accurate location, accurate dosing, convenient operation etc.
2, The equipment adopts piston pump to fill, and then is sent into the positioning dial by the conveyor belt, and the lid is rotated intermittently to enter the lid station to automatically cover the lid; the double-headed lid is used for sealing and the lid is four blades. Double-knife rolls down the edge with double-screw thread.
3, On the touch screen, it can adjust the filling volume
Parameters:
Items | Parameters |
Filling volume | 15-50ML (can be customized) |
Capacity | 40-60 (bottles/min) |
Air source | 0.6-0.8MPa |
Power supply | 1phase, 220V/50Hz, 1.8kw |
Dimension | 2500*1300*1800mm |
Total Weight | 500kg |

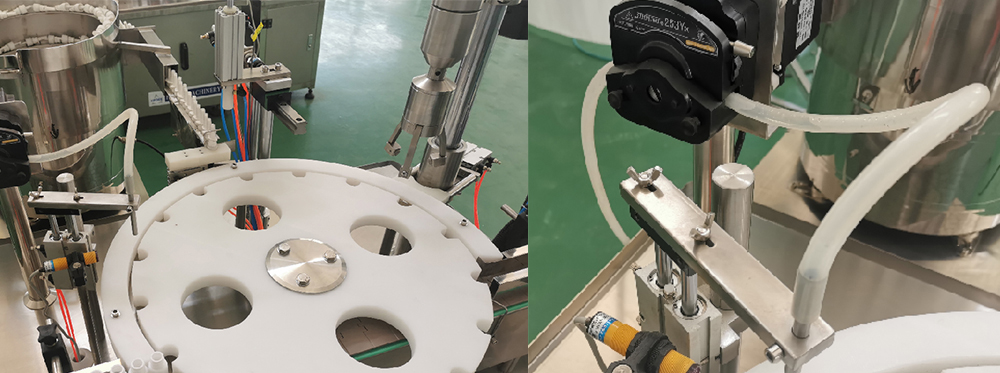

Details
![3essentialoilfillingcappingmachine Filling Machine Manufacturer](https://www.flexfillingmachine.com/wp-content/uploads/2024/03/3-essential-oil-filling-capping-machine.jpg)

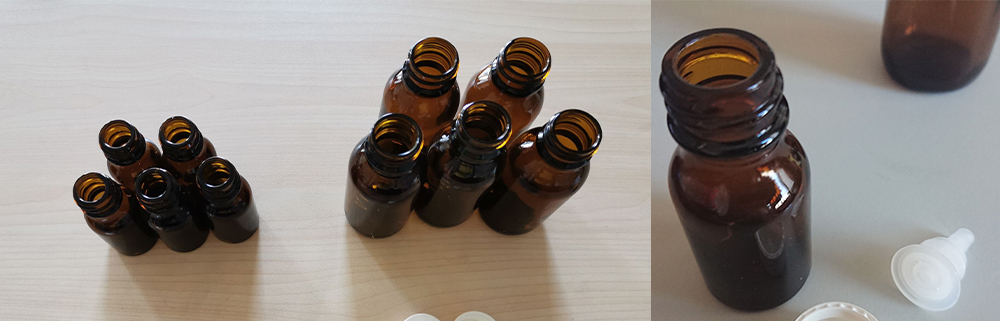

Suitable product
![4essentialoilfiller Filling Machine Manufacturer](https://www.flexfillingmachine.com/wp-content/uploads/2024/03/4-essential-oil-filler.jpg)
Related product

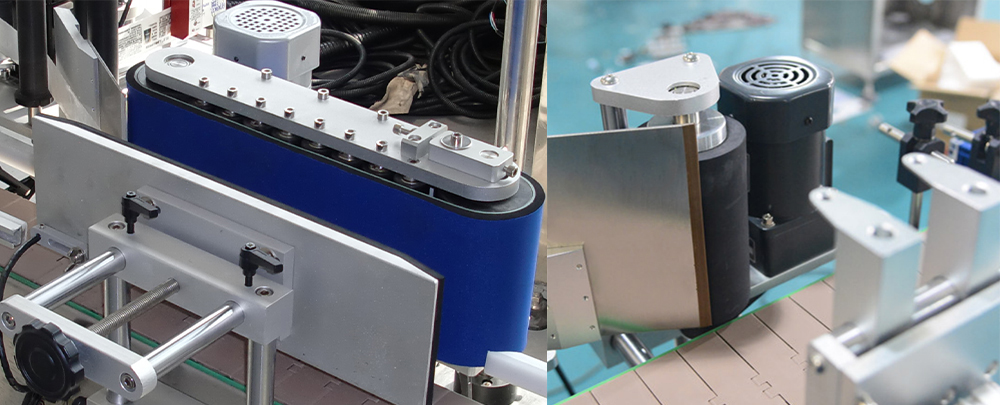

Round bottle labeling machines
