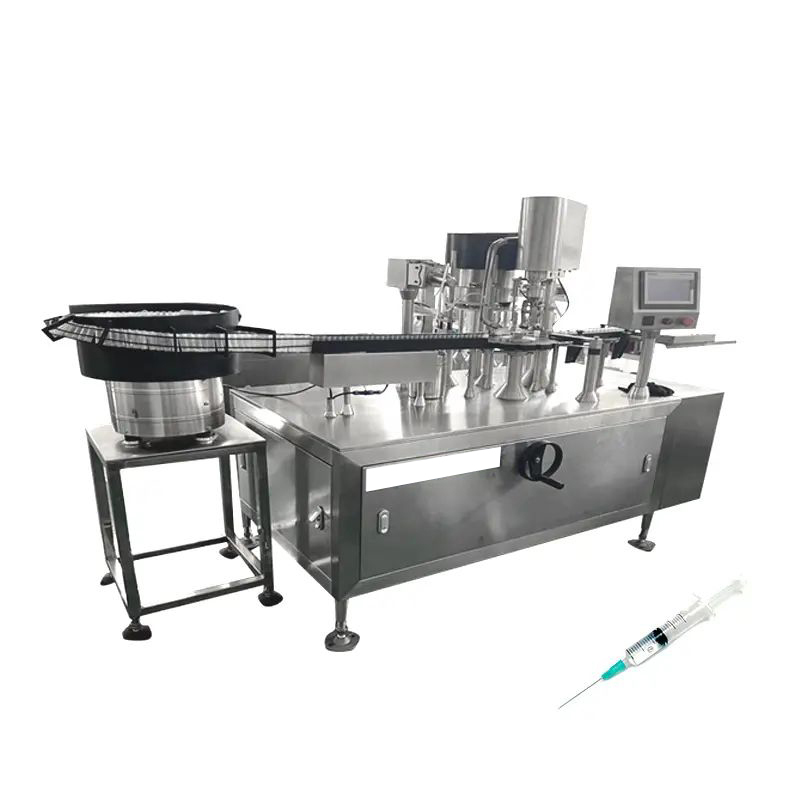

This is automatic gel booster drug filling capping machine, this Disposable Syringe filling machine is mainly used for filling and capping of disposable syringes. such as gynecologic gels, medical gels,various vaccines, etc.
The whole machine adopts PLC program control, frequency converter frequency conversion speed regulation, the syringe by the mechanical hand clamping and filling and then automatically add cap. The machine runs stably and reliably, and it is the optimal model for the gel filling of the syringe.
Automatic Syringe Filler
Features
1. Application range :suitable for different types of PET tube,special plastic tube,vial such 3 – 10lm etc.
2. Automatic tube feeding- automatic tube loading,automatic filling, automatic capping,automatic tube labeling machine and tube tray etc.
3. this medical prefilled gynecological needle tube gel cap filling machine is easy to operation,the production capacity is 1000-3000 per hour.we can according to our clients requirement to customized.
4. The whole system is controlled by PLC. The color touch screen make the operation simpler.
5. The most part of the machine is made from SS304 or 316L. For special material which is able to reach the GMP standard.
6. high-precision pump cylinder with low damping piston head, modular design, long life of pump cylinder.
Parameters:
| Items | Parameters |
| Filling head | 2 |
| Stopper head | 2 |
| Capping head | 1 |
| Filling volume | 3-10ml |
| Production capacity | 1000-3000 BPH |
| Power | 3ph, 380V/50Hz, 2.2KW |
| Weight | 500Kg |
| Dimension | 1800*2000*2000mm |
