Cream Jar Filling Capping Machine Line can be used for products of various viscosity and consistency, suitable for cream filling, inner lid capping and outer cap capping of round or special shaped jar. Widely used in pharmaceutical, chemical and food industries. Transparent dust cover is optional.
Main process:
Automatic tube feeder – cream filling – automatic inner cap loader – automatic inner lid capping – automatic outer cap loader – outer cap capping – output.

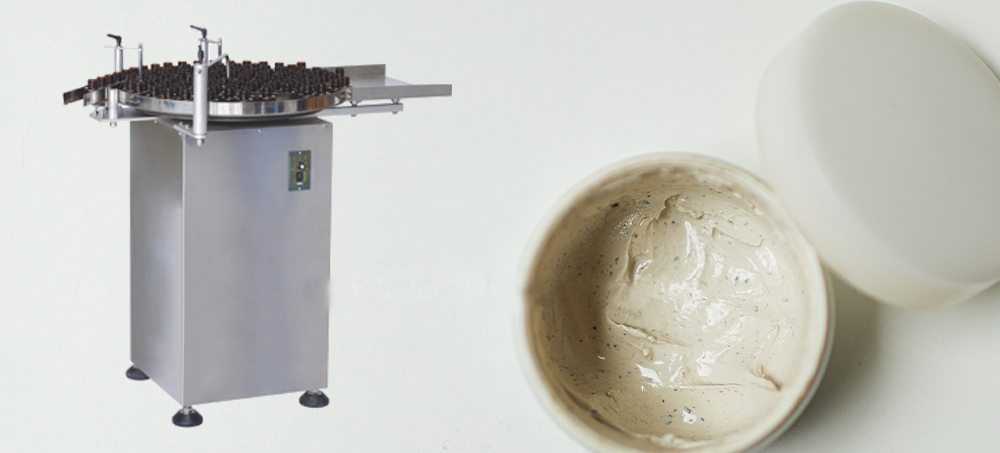

Turning feeding table
Jar Filling Capping Machine
Features
1.Touch screen PLC control, no bottle filling, frequency conversion speed regulation, running speed continuously adjustable.
2.The filling head probes to about 2/3 of the bottle to start filling, filling while rising, to prevent the liquid from impacting and foaming, no bottle will not be filled, no bottle will not be capped.
3.The filling system adopts a full quick-connect design, and the part in contact with the material can be completely disassembled without any tools, which is more convenient for cleaning and maintenance.
4.Intelligent control of filling quantity: The filling quantity can be directly inputted on the touch screen, and the filling quantity can be automatically calibrated. Switching between different specifications, it is extremely convenient to adjust the loading capacity, and there is no requirement for the level of the operator. Avoid the trouble of traditional debugging and testing
5.Intelligent manipulator screw cap, better effect, touch screen setting torque, quick and convenient switching between different specifications, and has the alarm function of unqualified screw cap tightness.
6.Overload protection and alarm prompt function, more safe and reliable.
Technical parameter
| Items | Parameters |
| Filling Volume | within 500gram |
| Filling Speed | About 2000 bottles/hour |
| Dose Accuracy | ±1% (＜200ml/g); ±0.5% (200-500ml/g) |
| Hopper size | 20-50L (customized) |
| Air Pressure | 0.6-0.8mpa |
| Power Supply | AC220V; 50HZ 1 phase |
| Power | 2 KW |
| Weight | about 600KG |
| Machine Size | About 2400*1500*1800mm (L*W*H) |
Suitable products
*suitable product for reference
