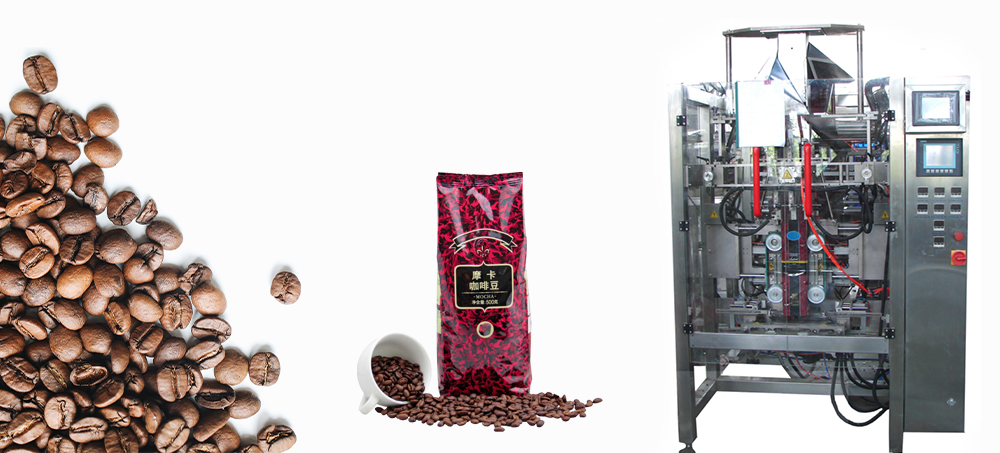

This Coffee Beans Sachet Packing Machine is suitable for packaging granules like coffee beans, the machine can do automatic weighing, feeding, filling, bag forming, sealing, final product output conveying, etc. The finished bag will be standing bag, 4 sides sealing.
Big Sachet Powder Packing Machine
Description
This box-type bag packaging machine is a latest machine developed by our company, four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction. This packaging machine adopts imported servo motor for paper feed and the man-machine interface uses advanced touch screen, making operation simpler and more convenient .It is very suitable for products such as coffee powder, coffee beans and all kinds of granular products, all kinds of powder products.
Features
1. Machine is controlled by PLC (SIEMENS)
2. Operation on touch screen (SIEMENS)
3. Vacuum film-pulling system
4. Panasonic servo motors for film-pulling
5. SUNX photocell for catching the color code
6. With film-pull auto bias-correction device
7. With printer
Parameters:
| No. | Items | Parameters |
| 1 | Bag type | Four side seal bag |
| 2 | Bag size | Front width: 80- 160mm; Side width 50- 80mmWidth of side seal: 5-10mm; Length 80 -340mm |
| 3 | Film width | Max.540mm |
| 4 | Packing speed | 10-20 bags/min |
| 5 | Compressed air consumption | 0.6Mpa 350L/min |
| 6 | Unit weight | 1000kg |
Main Part
Details
Final Products
Option
