This Big Sachet Powder Packing Machine is suitable for packaging powders into big bags, such as sugars, spices, medicine, etc.

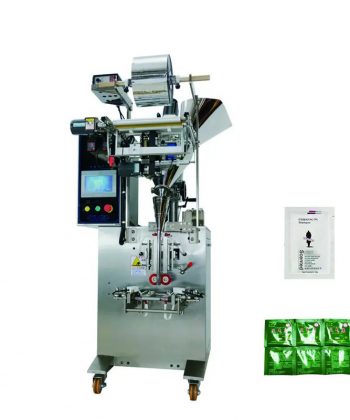

Big Sachet Powder Packing Machine
Application
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of powder of measurement packing. The sachet is made of film roll, two types of sealing way is optional.
Description
●All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions;
●The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade;
●Packing material: BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Parameters:
| No. | Items | Parameters |
| 1 | Measuring Scope | 50g-1kg(can be customized) |
| 2 | Bag Size | L: 60-280mm, W: 50-200mm |
| 3 | Packing speed | 10-70bags/min |
| 4 | Packing accuracy | ±0.2g (Depends on the single granule weight) |
| 5 | Total Power | 3 KW |
| 6 | Voltage | AC220V , 50Hz |
| 7 | Gross weight | 300kg |
| 8 | Machine dimension | 850*1100*1900mm |
Details
Sealing type
