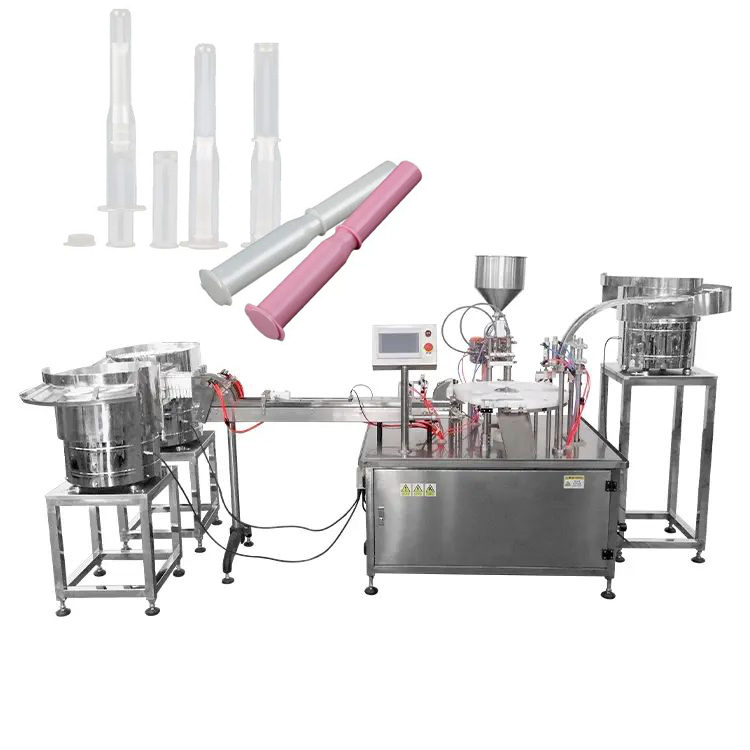

This Automatic Vaginal Gel Injector Filling Capping Machine is designed for pharmaceutical gynecological gel filling and capping for tube type injector. It is fully automatic machine including injector feeding, gel filling, cap feeding and capping, it can be connect with labeling machine or other packing line.
Fully Automatic Gynecological Gel Filling Machine
Features
1. Touch screen PLC intelligent control, with no tube, no filling, no capping, no tube delay stop and other functions.
2. Intelligent control of filling quantity: The filling quantity is directly input on the touch screen, and the filling quantity can be automatically calibrated. Switching between different specifications, it is extremely convenient to adjust the loading capacity, and there is no requirement for the level of the operator. Avoid the trouble of traditional debugging and testing.
3. Modular dose pump, high precision, easy to clean and maintain. Special anti-drip filling head, anti-drip effect is better.
4. It is equipped with a filling guide mechanism to ensure that the small nozzle package can be inserted accurately.
5. Intelligent upper tube turning mechanism, without the problem of high noise in the traditional multi-vibration disc mode; the servo is in charge, which is more accurate.
6. Overload protection and alarm prompt, more safe and reliable.
Technical parameter
| Item | Parameters |
| Capacity | 20-40/50-70/80-100/100-150 (pcs/min) |
| Quantity | 3-5g (customized upon request) |
| Gas source | 0.6-0.8MPa |
| Power supply | 220V/50Hz |
| Total power | 3-5kw |
| Total Weight | 500-1000kg |

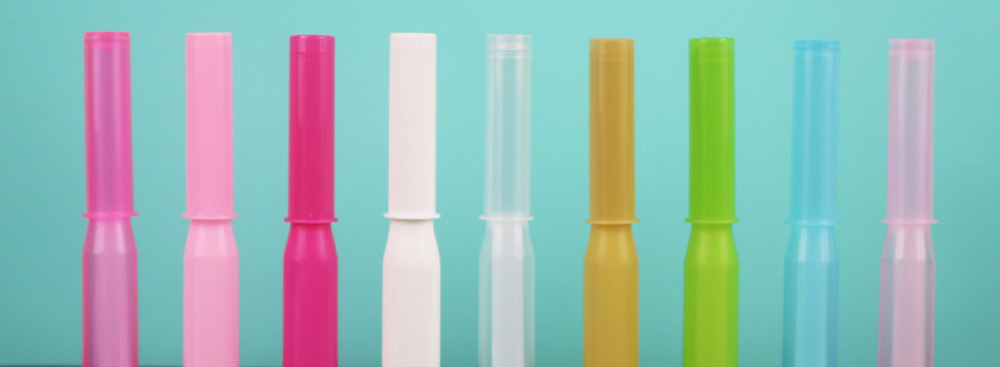

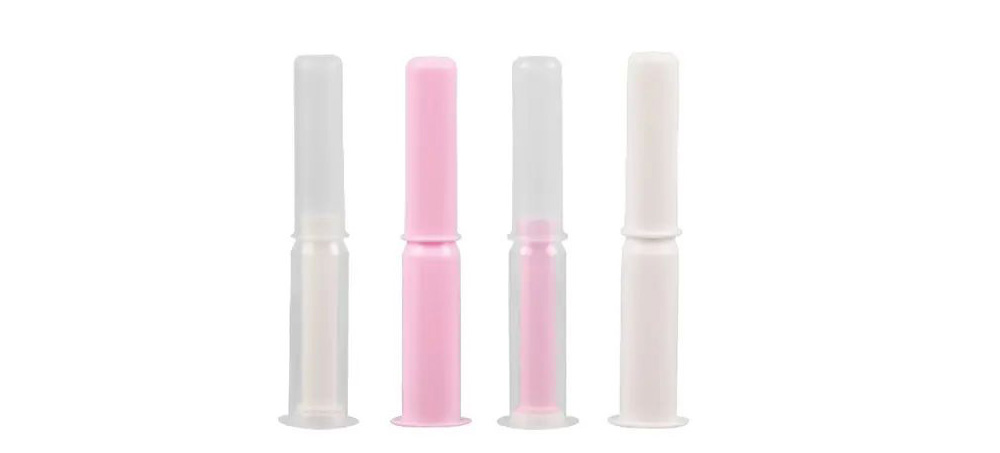

Suitable products
*suitable product for reference
Contact Qualipak Machinery to know more details!
