This filling machine is a leaner type filling machine with up hopper, suitable for thick liquid filling into all different kinds of bottles. Product could be such as tomato sauce(ketchup), food paste, cream, honey, jam, etc.

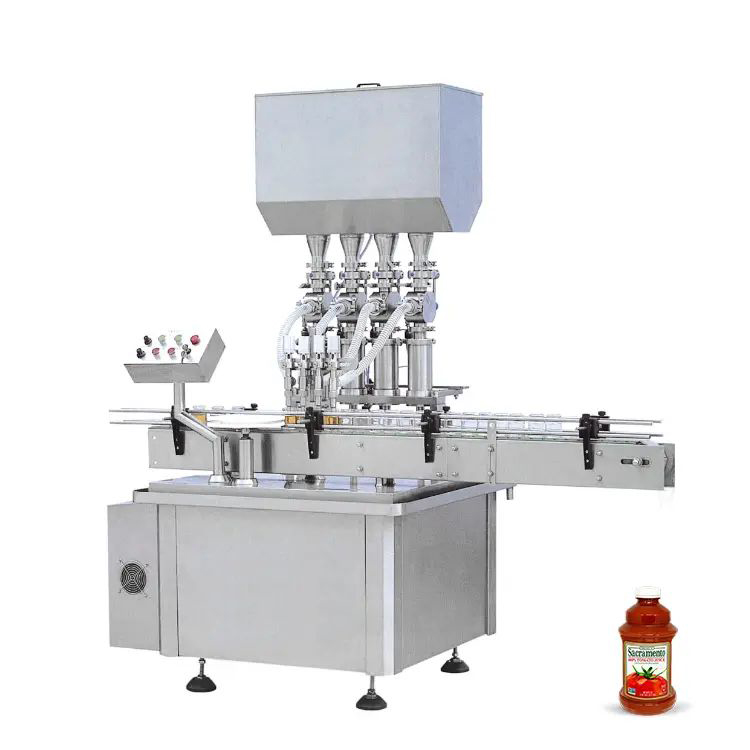

Automatic 4 Heads Paste Filling Machine
Features
1, The filling system adopts a full quick-connect design, which can be completely disassembled without tools, and is easy to clean and maintain.
2, Special anti-drip filling head has better anti-drip effect. It has the functions of no bottle no filling and no bottle automatic shutdown.
3, Intelligent control of filling volume: the touch screen directly inputs the filling volume, and the filling volume is automatically calibrated. It is very convenient to switch between different specifications and adjust the loading volume, and there is no requirement for the level of the operator. Avoid the trouble of traditional test while adjusting.
4, With touch screen to control and settings.
Parameters:
| Items | Parameters |
| Filling volume | 50-500ml(with control system to fill up to 1000ml) |
| Capacity | 0～1500 (bottles/hour) |
| Air source | 0.6-0.8MPa |
| Power supply | 220V/50Hz, 0.5kw |
| Total Weight | 400kg |
| Dimensions | 2000×800×1800mm |
| Hopper capacity | 100L |
