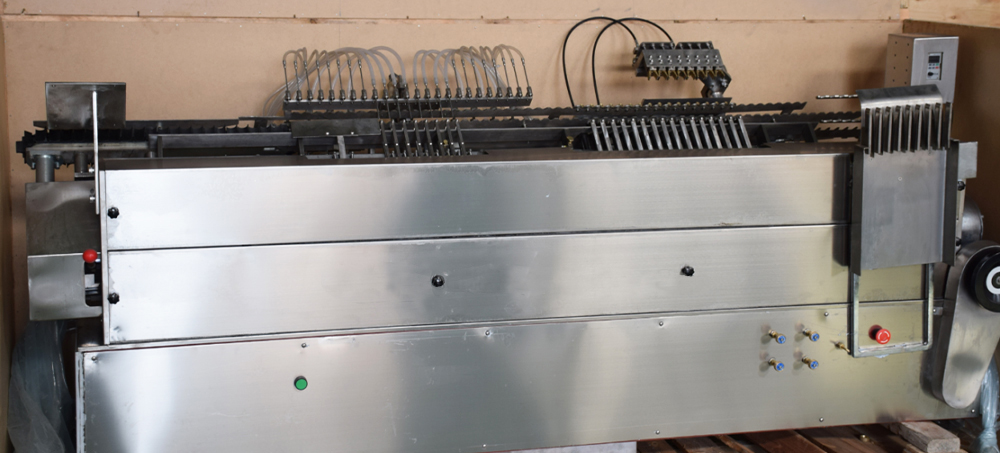

This is our Automatic Horizontal Ampoule Filling Machine, this machine is convenient for the pharmaceutical factories. Every 8 ampoule bottles as a group, move together to each working process position for the bottle feeding, prior nitrogen filling, liquid filling, later nitrogen filling, bottle warming up and bottle sealing. This machine is simple structure, easy operation and steady quality.

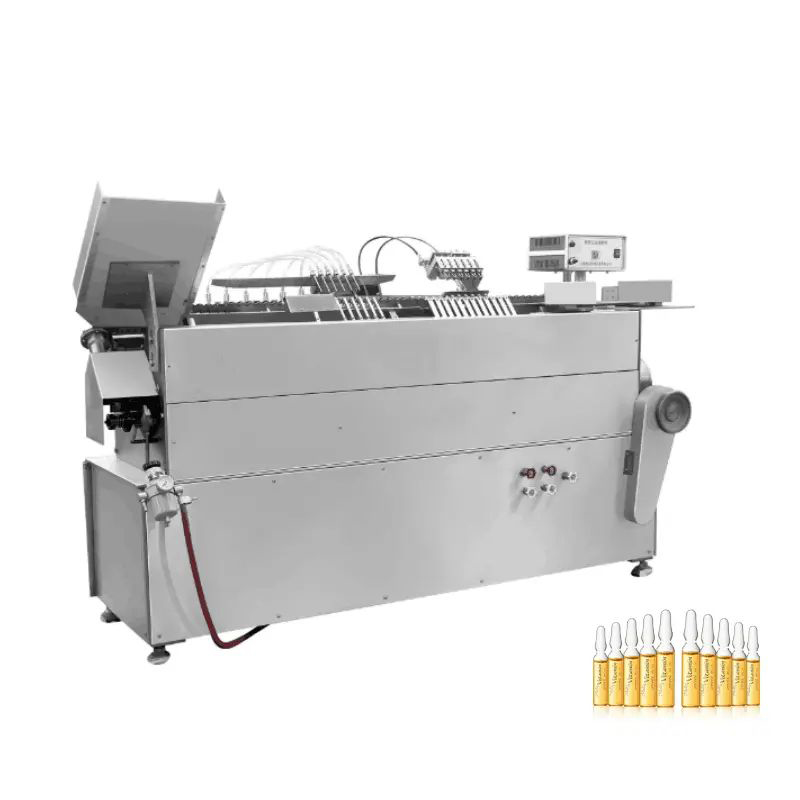

Automatic Ampoule Bottle Filling and Sealing Machine
Description
This is our ampoule filling and sealing machine, this machine is convenient for the pharmaceutical factories. Every 8 ampoule bottles as a group, move together to each working process position for the bottle feeding, prior nitrogen filling, liquid filling, later nitrogen filling, bottle warming up and bottle sealing. This machine is simple structure, easy operation and steady quality.
Features
1. This is a new generation of the ampoule drawing, filling and sealing combined equipment.
2. This machine adopts the rectangular feeding instead of the traditional ampoule feeding methods to make the feeding more steady with less broken rate.
3. A new clutch device is installed under the ampoule feeding hopper. In this way, the ampoule feeding can be stopped at any time while the machine is still running. And the ampoule loss can be reduced efficiently.
4. This machine we use PLC control system ,color touch screen, the material of contact part uses stainless steel 316L ,others use ss 304.
5. This machine running direction from left to right, Ampoule Sealing gas is propane and Oxygen gas.
6. This machine have laminar air flow machine,exhaust Fumes extractor with SS Pipe.
Main technical parameter
| Parameters | Specification |
| Model | HG-8 |
| Productivity | 8000-10800 bottles per hour for 1ml |
| Power supply | 380V/ 50hz 3 phase 1kw |
| Filling accuracy | ≤±1% |
| Fuel Consumption | 2-2.5M3/h (gas/ LPG) |
| Combustion improver | 1-1.5M3/h |
| Machine size | 1880*1100*1800mm |
| Weight | 750kg |
Details
Automatic Horizontal Labeling Machine
HAW200 Horizontal Labeling Machine

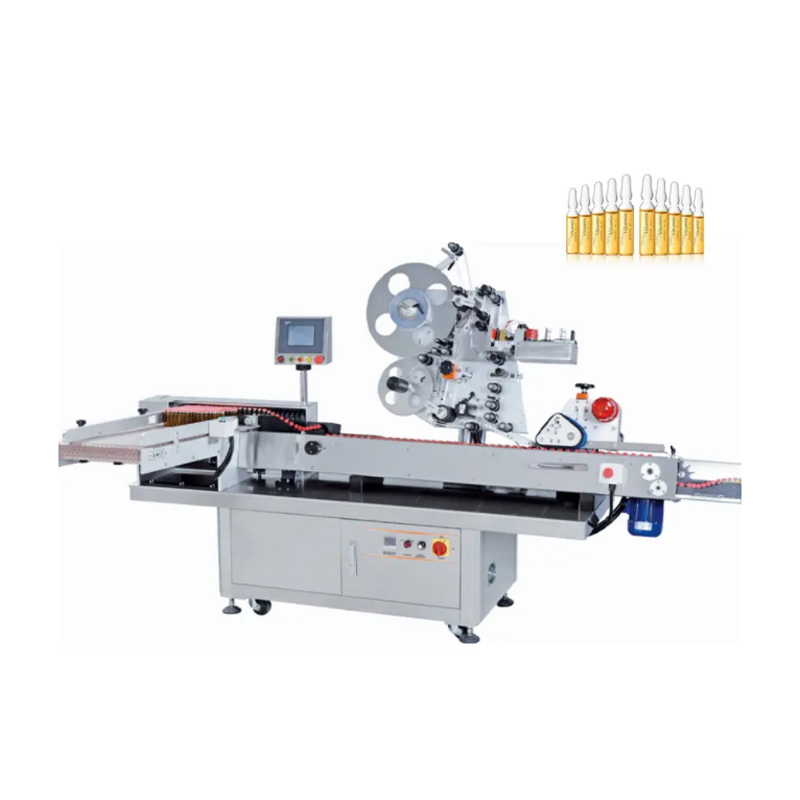

HAW600 High Speed Vial Labeling Machine
