Main process:
Bottle feeding table(Rotary type) – Liquid filling – automatic cap loader – automatic capping – round bottle labeling machine – Shrink labeling machine – output.

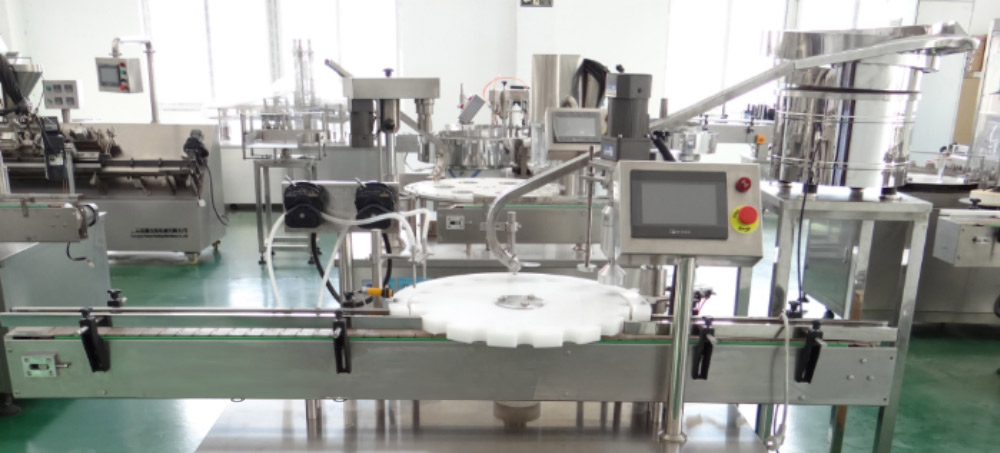

Bottle Rotary Feeding Machine
Bottle Rotary Feeding Machine
Description
This machine integrates the functions of automatic bottle feeding, automatic positioning, filling, stoppering, and capping. It is widely used in pharmaceutical, biological, daily chemical, chemical and other industries.
Features
1, With touch screen & PLC control, with functions such as no bottle no filling, no bottle no capping. Variable frequency speed regulation, continuously adjustable operating speed.
2, Overload protection and alarm prompt function, more safe and reliable.
3, Intelligent control of filling volume: the touch screen directly inputs the filling volume, and the filling volume is automatically calibrated. It is very convenient to switch between different specifications and adjust the loading volume, and there is no requirement for the level of the operator. Avoid the trouble of traditional test while adjusting.
4, Mechanical claw capping, including torque detection and capping unqualified alarm prompt function, the capping torque can be set on the touch screen, which is convenient and quick, and can greatly improve the capping pass rate and capping quality.
Technical parameter
| Items | Parameters |
| Filling nozzle | 2 |
| Capping head | 2 |
| Filling pump | Peristaltic pump |
| Filling volume | 10ml (can be customized) |
| Capacity | 50 (bottles/min) |
| Air source | 0.6-0.8MPa |
| Power supply | 220V/50Hz, 2.5kw |
| Total Weight | 800kg |
| Dimensions | 2200×1700×1800mm |

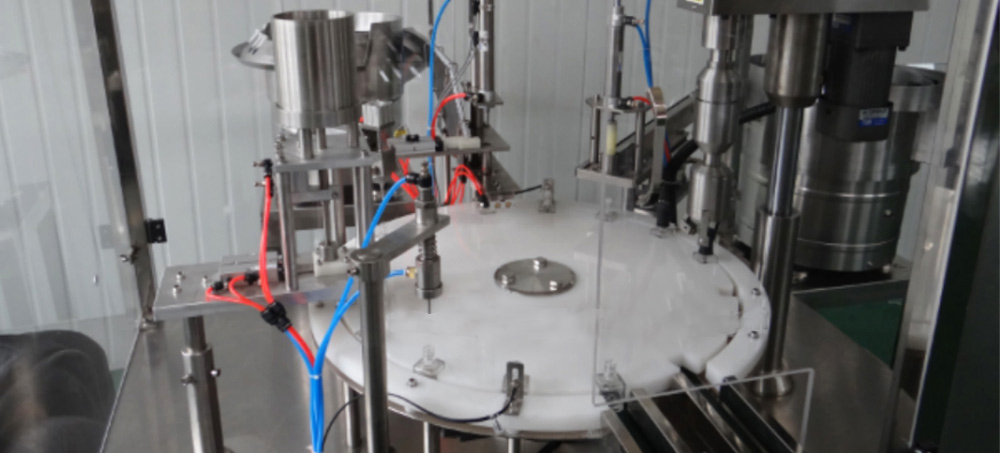

Details

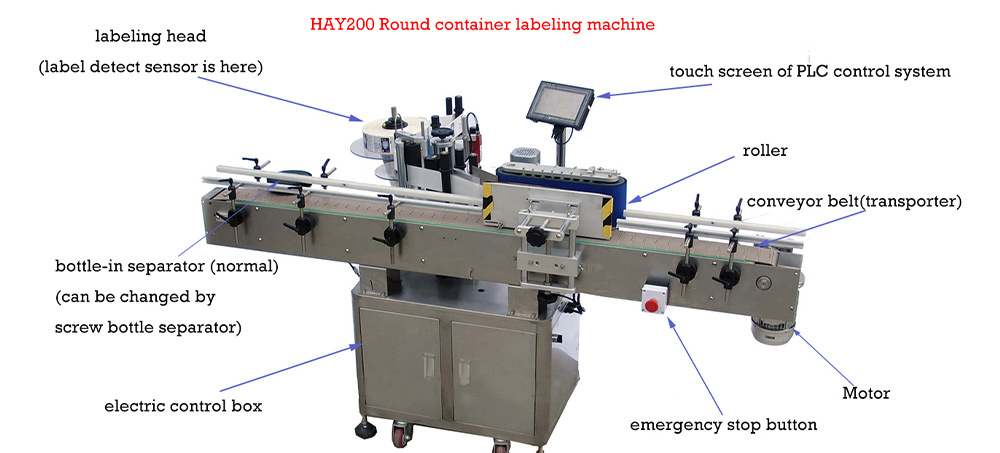

Round Bottle Sticker Labeling Machine
Shrink Sleeve Labeling Machine Unit
Features
-Single shrink label feeding tray, microcomputer automatic control;
-Automatic detection, automatic positioning;
-Fast label change, labor-saving, accurate cutting position.
Technical Parameters
| Items | Label inserting cutting machine |
| Input power | 2KW |
| Input voltage | 220V/AC 50Hz |
| Productivity | 150 bottles/min (normal efficiency) |
| Dimension | 2100L×850W×2000H mm |
| Applicable roll diameter | 28mm～120mm |
| Applicable label length | 30mm～250mm |
| Applicable label thickness | 0.03mm～0.13mm |
| Weight | 240kg |
| Items | Steam shrink tunnel & steam generator |
| Input power | Single phase 220V 50HZ |
| Input power | 0.18KW(shrink tunnel)+24kw(steam generator) |
| Dimensions (mm)-shrink tunnel | 1800L*550W*1500H |
| Dimensions (mm)-steam generator | 580L*680W*1450H |
| Weight | 75Kg(shrink tunnel)+80kg(steam generator) |

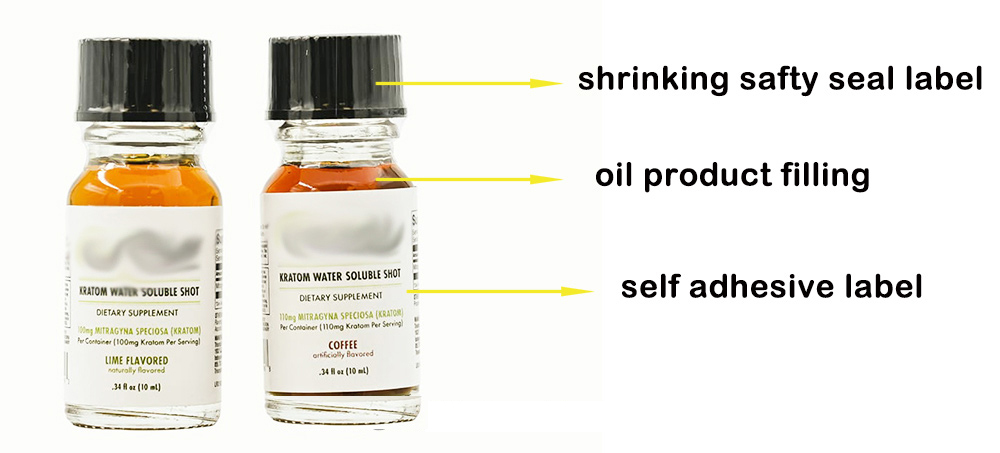

Suitable products
