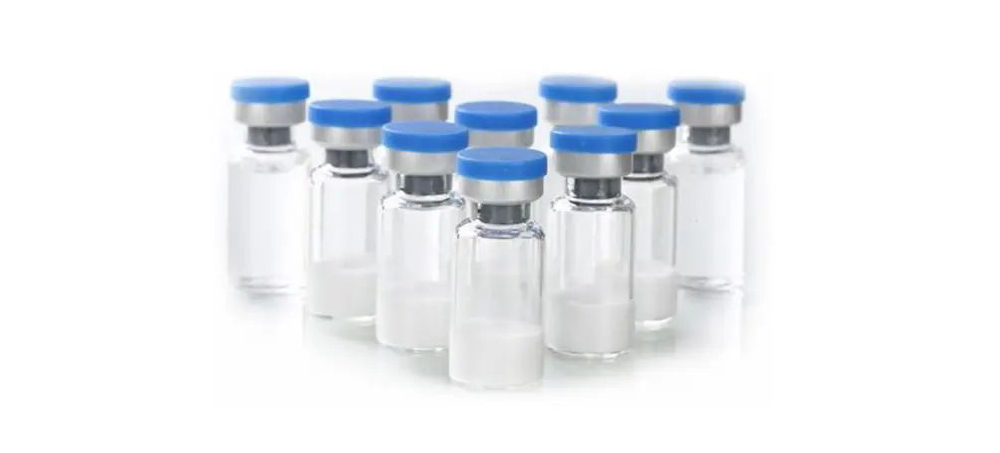

This Automatic Glass Vial Powder Filling Capping Labeling Line includes a bottle feeding machine, an all-in-one filling, stopper and capping machine, and an automatic labeling machine. It can realize the whole process of automatic vial powder filling to labeling. The output can be customized according to customer’s requirements. It is widely used in the filling needs of various pharmaceutical and food bottled powders.
Process

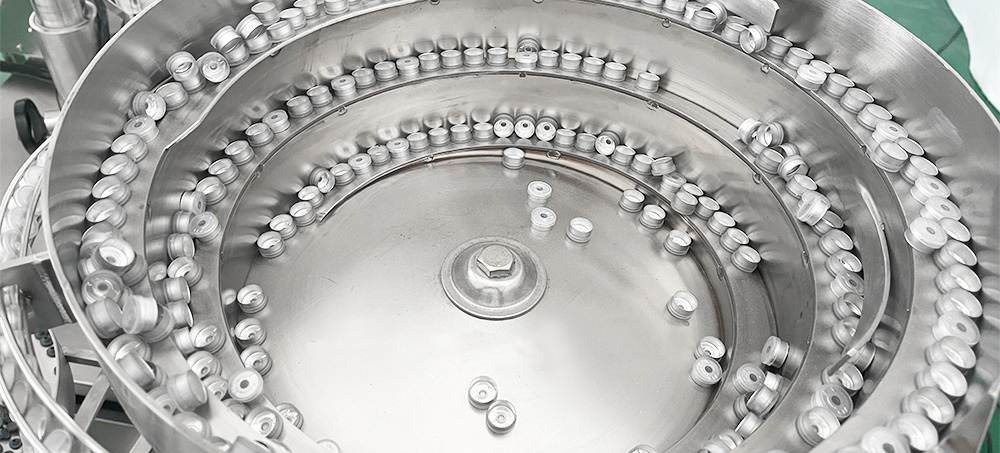

Automatic vial feeding by rotary machine – powder filling – automatic stopper feeding – automatic plugging – automatic cap feeding – automatic cap sealing – automatic transfer to conveyor of labeling machine – wrap around labeling – output
Rotary Feeding Table
Application
This bottle turning table system is applicable to all kinds of cylindrical bottles. It is highly featured by high speed and stable performance. It is always used with the packing line. Besides, the feeding speed is adjustable. If the bottle material is easy to be damaged by the steel surface, we will recommend to add a plastic coating which makes the surface very smooth.
Main Technical Parameters
| Bottle Type | 5-20ml glass vial |
| Bottle Size | D: 20-120mm; H: 30-300mm |
| Turntable Size | D: 700 mm (can be customized according to bottle size) |
| Rotating Speed | 5-48 bottles/min (50ml bottle) |
| Bottle Feeding Speed | ≤100 bottles/min (can be adjusted) |
| Power Supply | AC220V; 50HZ |
| Power | 0.2KW |
| Weight | about 60KG |

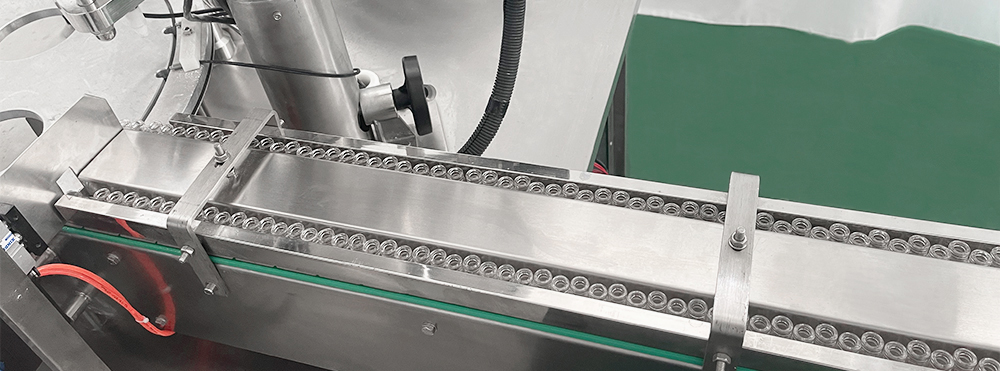

Automatic Vial Powder Filling Plugging and Capping Machine
Features
1. This machine is applied for glass vial powder filling,plugger capping machine etc. There is high accuracy cam mechanism to provide Graduated dial to locate the cap on， accelerating cam transmission capping head lifting; constant torsion capping, powder filling; touch screen control, no bottle no filling, no inside and outside cap, with advantage of stable transmission, accurate location, accurate dosing, convenient operation etc.
2. This filling system is widely suitable for small bottle filling and capping,which is complied with GMP standard.
Main technical parameter
Capacity: 20-40bottles per minute
Filling heads: 1 heads
Filling volume: 5-20ml
Rubber head: 1
Capping heads: 1
Filling accuracy: ±0.05% per time
Power supply: single phase, 220V 50Hz
Pow er consumption: 1.8kw
Size: about 2000mm x 1500mm x 1800mm
Details

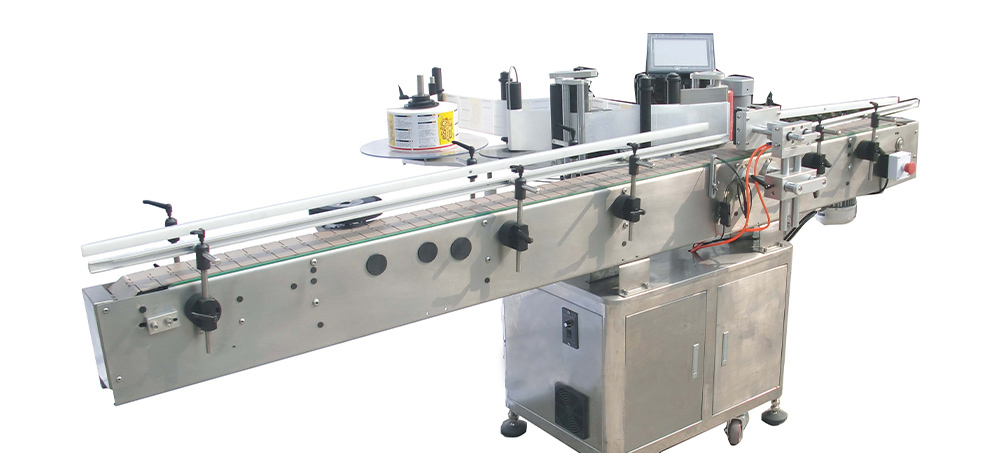

Automatic Round Bottle Labeling Machine
