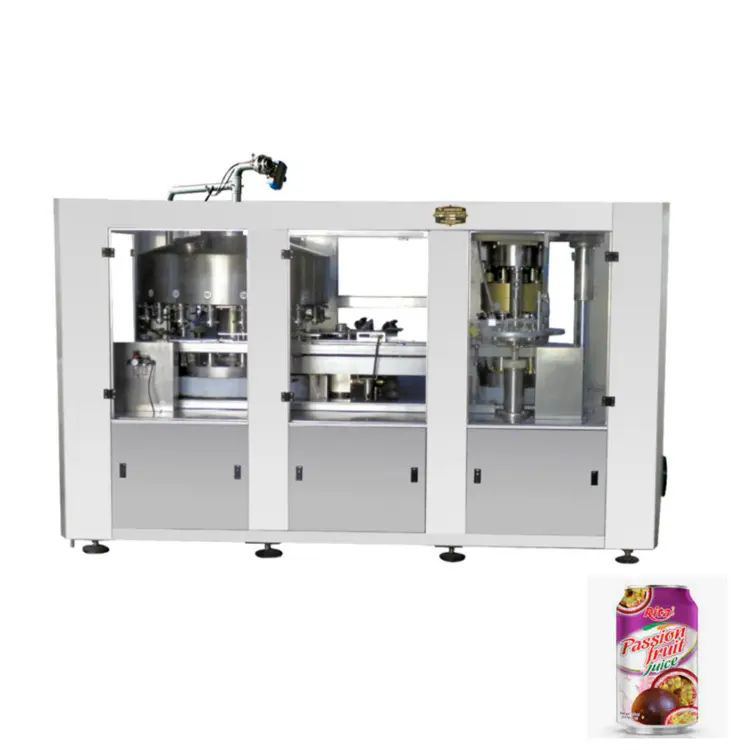

This is automatic fruit juice filling seaming machine, the equipment is suitable for filling fresh juice, canning of various round cans. It adopts the plunger filling method, and the filling is accurate.
Fully Automatic Can Juice Filling Machine
Description
This is automatic fruit juice filling seaming machine, the equipment is suitable for filling fresh juice, canning of various round cans. It adopts the plunger filling method, and the filling is accurate. Referring to the most advanced can sealing in Switzerland, the sealing and sauce filling machine is designed and manufactured for filling similar products.we use pneumatic control to automatically lower the lid without contact with the can body. the production capacity is controlled by touch screen. Ideal equipment for canning plants.
This machine is suitable for fruit juice with granules,passion juice,pineapple juice,peach juice, grape juice, orange juice, mango juice, watermelon juice, apple juice, blueberry juice, strawberry juice,red grapefruit pulp etc.
Technical parameter
| Item | Parameters |
| Filling head | 18 |
| Capping head | 4 |
| Production capacity | 15000 cans per hour |
| Filling temperature | 85 degred |
| Applicable tin can diameter | Φ52.5-Φ83.3mm |
| Applicable tin can height | 70-133mm (can be customized) |
| Air pressure | 0.6Mpa |
| Power | 7.5kw |
| Power supply | 3 phases 380v 50/60hz |
| Machine size | L2800mm X W1950mm X H 2200mm |
| Machine weight | 4500kg |
