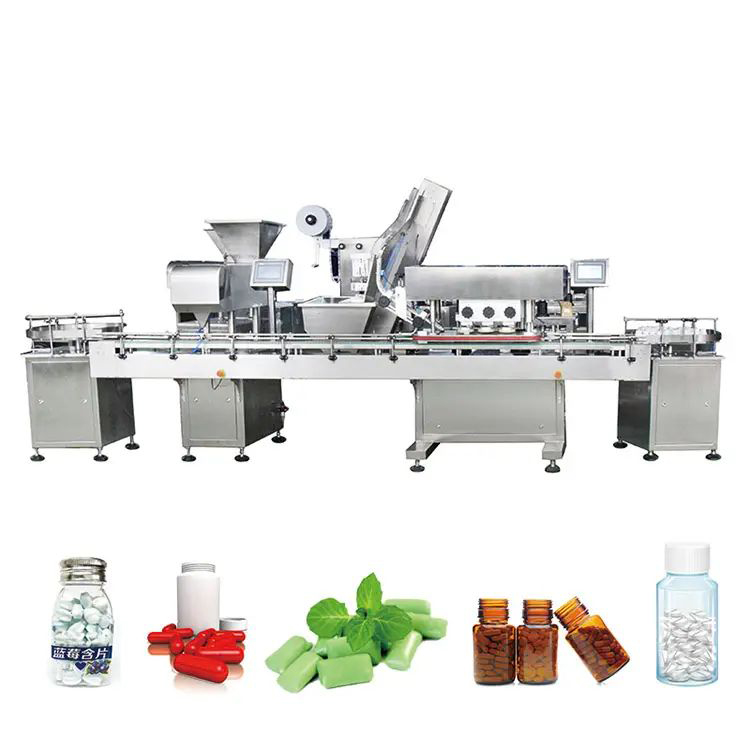

Automatic Candy Counting Filling Line

1 candy filling machine
2 fully counting filling line

Bottle Unscrambler

3 bottle feeding machine

Parameters

ItemAuto bottle unscramblerTurning table
Power supplySingle phase, 220V
Power consumption0.25kw0.2kw
Feeding speed20-80 Bottles/minute60-80 bottles/min
Total Weight200kg100kg
Dimensions1200×1150×1300mm650 x 650x 1000mm
Automation gradeFully automaticNeed manually put the bottles
FunctionBottle arranging and feedingBottle feeding and collecting

Automatic Electronic Counting Machine

4 candy counting filling machine

Description

Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

Parameters

ItemsParameters
ApplicationFilled capsule(00-5#)Soft Gelatin capsulechewing gumTabletother solid object under machine range
Hopper Volume20L
Capacity20-30bottles(50-100 pcs/bottle)/min
Filling Quantity2-9999pcs/bottle (adjustable)
Bottle SizeDiameter: 30-75mmHeight:40-250mm
Counting SizeThickness: 3-10mmDiameter: 3-22mmLength: 3-30mm
Compressed air0.6Mpa
Machine Weight250kg
Machine Size L × W × H (mm)1360x1300x1700mm

Details

5 detail counting filling machine

Automatic Desiccant Inserting Machine

6 Desiccant Inserting Machine

Description

Tablet and capsule are easy to go moist, so it is necessary to put the desiccant into the container to keep medicine away from moisture in order to improve reliability of guarantee period. The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily. It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error. The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.

Parameters

ItemsParameters
Bottle Size20-300ml
Output40-100bottles/min
Power Supply220v 60Hz
Power0.85kw
Overall Dimension1150*800*1900mm

Automatic Capping Machine

7 automatic capping machine

Description

The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.

Parameters

ItemsParameters
Size of bottles20-500 ml
Output50-150 bottles/min
Diameter of capsφ20-65 mm
Diameter of bottlesφ20-120 mm
Power supply220V 60Hz
Power1.5KW
Overall dimensions2160*1050*1900 mm
Weight650KG

Detail

8 capping machine detail

Automatic Sticker Labeling Machine

HAY200

HAY200 Round Bottle Labeling Machine

HAS3500

HAS3500 Square/Flat Bottle Labeling Machine
