Automatic Bag/Pouch Labeling Machine is one of our customized model based on HAP200 Flat surface labeling machine, which is with a suction type feeding device, suitable for automatic feeding needs for product like pouches, bags, plates, trays, etc. Especially good for soft bags and pouches with breathing valve or zipper.

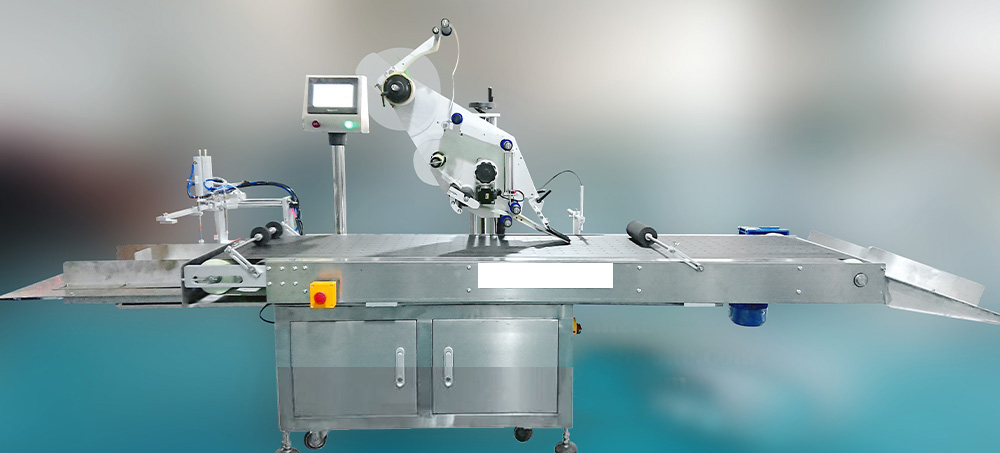

Automatic Bag Labeling Machine with Auto Feeder
Features
1.Applicable to industries: electronic accessories, food chemicals, electrical accessories, hardware and machinery, auto parts, printing and packaging industries;
2.Applicable product range: carton, flat bottle, round bottle, square box, and other cylindrical/flat body labeling, bar code, electronic supervision code, classification label, etc.;
3.Function: Automatically detect labeling, improve the efficiency of product labeling, accurate attachment position, good quality, and high stability; avoid manual labeling efficiency, skewed attachment, blistering and wrinkles, irregular attachment positions, etc. A series of problems; effectively reduce product costs, improve product label aesthetics, and enhance product competitiveness;
4.The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm, beautiful and easy to operate and maintain;
5.The applicable scope of the equipment is customized according to customer samples, the labeling accuracy is +1mm, and the applicable product size can be adjusted arbitrarily within the technical specification;
6.The structure is small and exquisite, and the floor space is small, which is convenient for the movement and placement of the equipment; the equipment includes positioning device, fault alarm function, production counting function, printing function, etc. (reserved)
Parameters
| Size of Machine | 2000(L)×600(W)×1400(H)mm |
| Output Speed | 15-30pcs/min(it depends on the size of object and label length) |
| Height of Object | 1-20mm (can be customized) |
| Width of object | 150-480mm(Need to determine the size range according to the product situation) |
| Length of object | 150-550mm(can be customized) |
| Width of Label | 10-135mm(can be customized) |
| Length of Label | 10-200mm(can be customized) |
| Accuracy of Labeling | ±1mm (excluding object and label error) |
| Label roller inside diameter | 76mm |
| Label roller outside diameter | 280mm |
| Power Supply | 220V 1KW 50HZ(if power supply different, a transformer is needed) |
| Air pressure | 0.5-0.7Mpa |
| Weight of Machine | Abt. 250kg |
Details
* Suction type feeder
* Labeling position

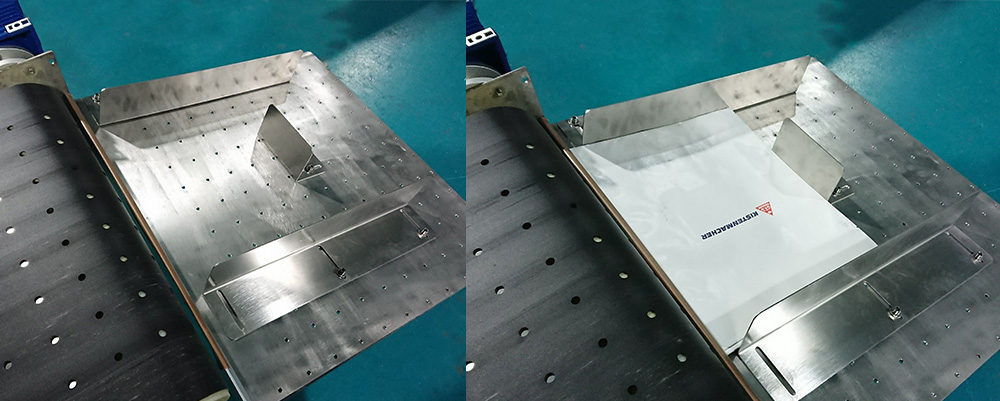

* Collection tray
Option
– Coding machine (for printing dates/series numbers/lots, etc.)
– Sensor for detecting clear and transparent labels
Suitable products
*Example of some suitable products
