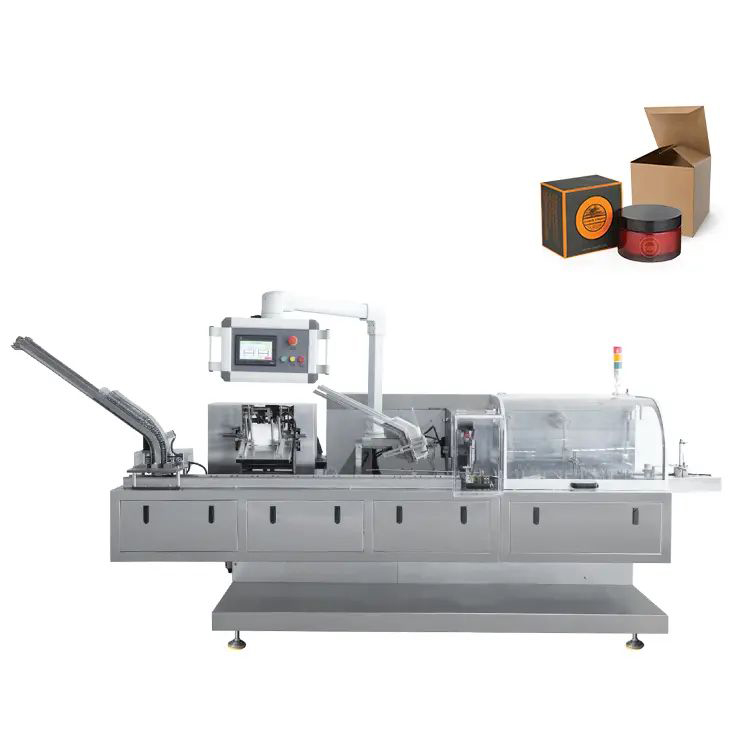

120 Type Box Packing Machine can be used for packing various products into carton box such as bottle, jar, soft tube, toothpaste, vial, ampoule, sachet, pouch, etc.
Automatic Cartoning Machine
Main process:
Manually put the product on the conveyor (Or connect with production line)- leaflet folding & inserting (Optional) – automatic packing the product into box – automatic close the box – output.
Features:
1.The use of automatic feeding, out of the box, into the box, batch number, sealing boxes and rejection and other forms of packaging, compact structure, simple operation and adjustment；
2. Servo / stepper motor and touch screen, PLC programmable control system, man-machine interface displays clearer and easy operation, high degree of automation, more humane;
3. the use of photoelectric eye automatic detection and tracking systems, air bag case less than the maximum savings of packaging materials;
4. packaging range, easy to adjust, enabling fast switching between a variety of sizes;
5. Replace the specifications without changing the mold, can be realized simply adjust, PLC automatically display speed and finished products counting.
6.the use of goods into the box is not in place automatic shutdown and main drive motor overload protection device for more secure and reliable;
7. according to customer requirements, using the turn-style security shield, easy to operate, beautiful appearance.
8. with plastic packaging machine, pillow packing machine, three-dimensional packaging machines, bottling line, filling machine, labeling machine, inkjet printer, said meter line, other production lines and other equipment to achieve linkage of production;
9. Can be designed into a variety of automatic under the feeder and cartridge system according to the requirements of the packaging.
Technical Parameter:
| Machine | Box packing machine |
| Production speed | Abt. 30-50 cartons/min |
| Box dimension range | L(50-200)mm*W(20-90)mm*H(15-70)mm |
| Quality requirement | 250-450g/m3 |
| Main motor power | 1.5KW 380V 50Hz |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 120-160 L/min |
| Overall dimensions | About 3170×1260×1750 mm |
| Weight | 1200Kg |
Suitable products
